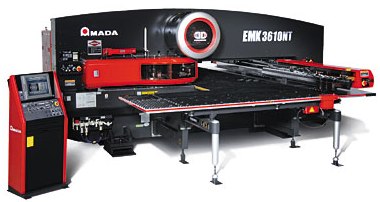

EML K3610NT Standard Features

• High speed punching with a servo-electric, direct twin drive system that dramatically increases ram speed and eliminates unnecessary ram motion
• 100" X-axis can process 8' sheets without repositioning which reduces process time and improves accuracy
• Quiet operation with variable ram-stroking control maximizes hit rate while achieving the lowest noise levels in today's manufacturing environment
• 33-ton ram delivers superior edge quality and accuracy
• 58-station multiple track turret with two 1¼" and two 4½" auto-index stations
• Full set of high performance, quick-adjust, large station air-blow holders.
• Extended tool life and minimum tool maintenance with Air Blow Oil Mist tooling
• Virtually eliminates slug pulling with the power vacuum system
• High quality, press-brake-like forming operations up to ½" with programmable dwell at bottom of stroke for complete plastic deformation
• Progressive forms, flanges and embossments up to ½" eliminate secondary operations
• Forming and high quality processing eliminate secondary operations
• Reduced vibration of the direct twin drive ram combined with the rigid bridge frame ensures tighter tolerances extending tool and machine life while producing high quality, distortion free parts
• Brush table design provides scratch-free processing, eliminating secondary finishing.
• Free standing PC-based network CNC control allows for flexible layout
