The KEY to quality fabrication is building quality control into the production process. FabriVISION provides a consistent, reliable inspection process while increasing your shop’s productivity.

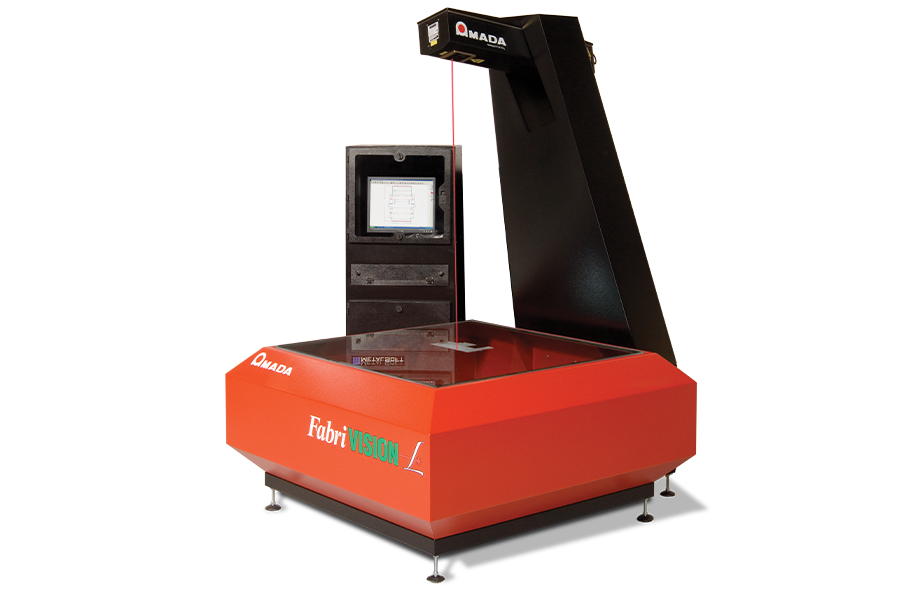

Now you can quickly inspect every laser-cut and punched part with unparalleled accuracy and precision. FabriVISION is a noncontact, laser inspection system that allows you to examine any opaque flat part including plexi-glass, gasket materials, and other rigid parts. If you’re a quality-conscious sheet metal fabricator who strives to stay ahead of your competition, FabriVISION can increase the performance, productivity, and profitability of your fabrication

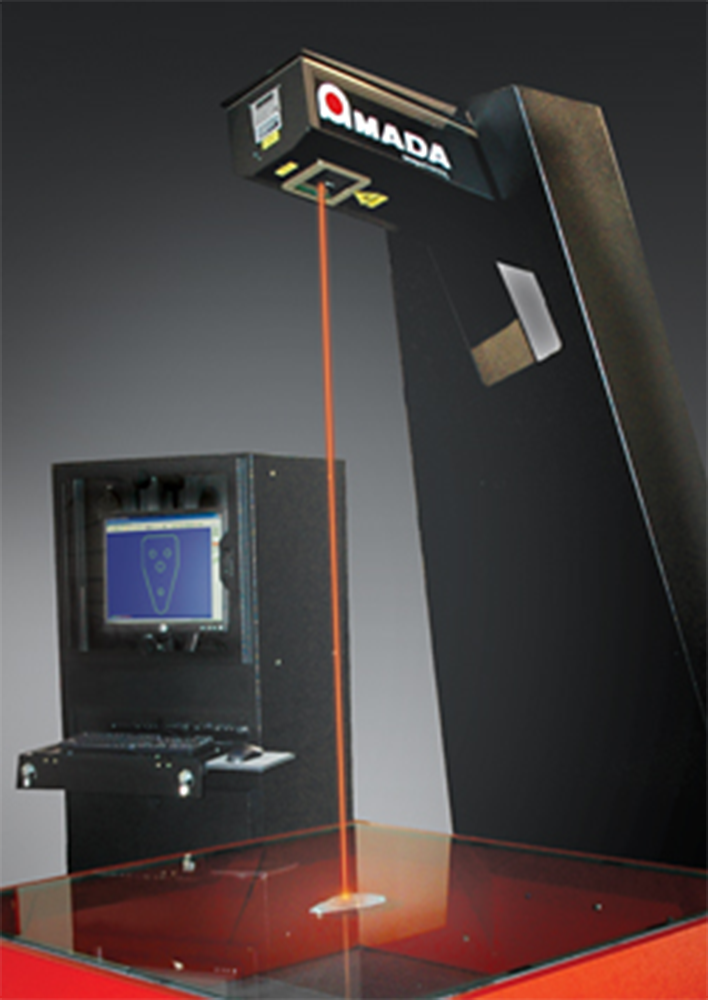

Our latest generation High-Definition Laser projector scans parts in as little as 12 seconds. The special HD Laser projector is designed to be virtually maintenance free.
FabriVISION automatically self-calibrates before scanning – ensuring precise scans every time.

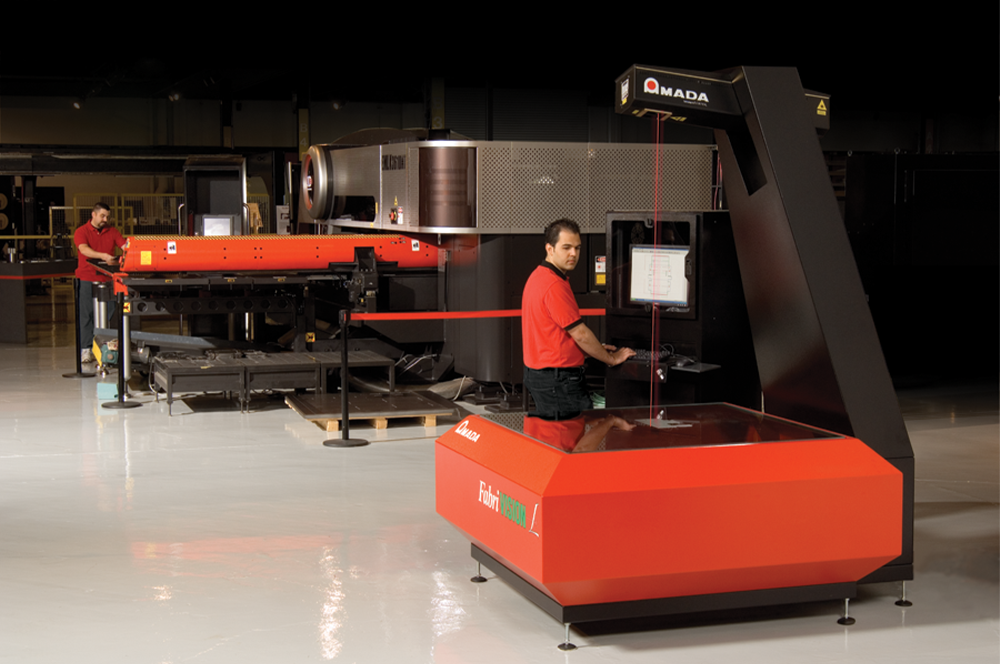

Unlike other inspection devices, FabriVISION has been engineered to work alongside your turret punch presses and laser cutting systems. For high-resonance shop environments with vibration control issues, optional stabilizer boots can isolate FabriVISION from impact tremors – while precise part inspection continues like clockwork.
FabriVISION comes with our custom-designed shop-ready enclosure, complete with air flow & filtration management, and a power-filter unit to protect your investment.
FabriVISION’s glass top is engineered to handle parts weighing up to 200 lbs. Additional glass tops increase convenience and flexibility.
Since FabriVISON is fully integrated with AP100US, inspections can be performed by the machine operator right at the production station. A full scan is completed in seconds while comparing each measurement to CAD specifications. This reduces the time between CAD drawing and first article inspection up to 96%.
FabriVISON detects a part’s form features by utilizing its built-in scan height adjustment function. Variable height scanning allows the operator to precisely measure holes within formed and/or embossed parts.

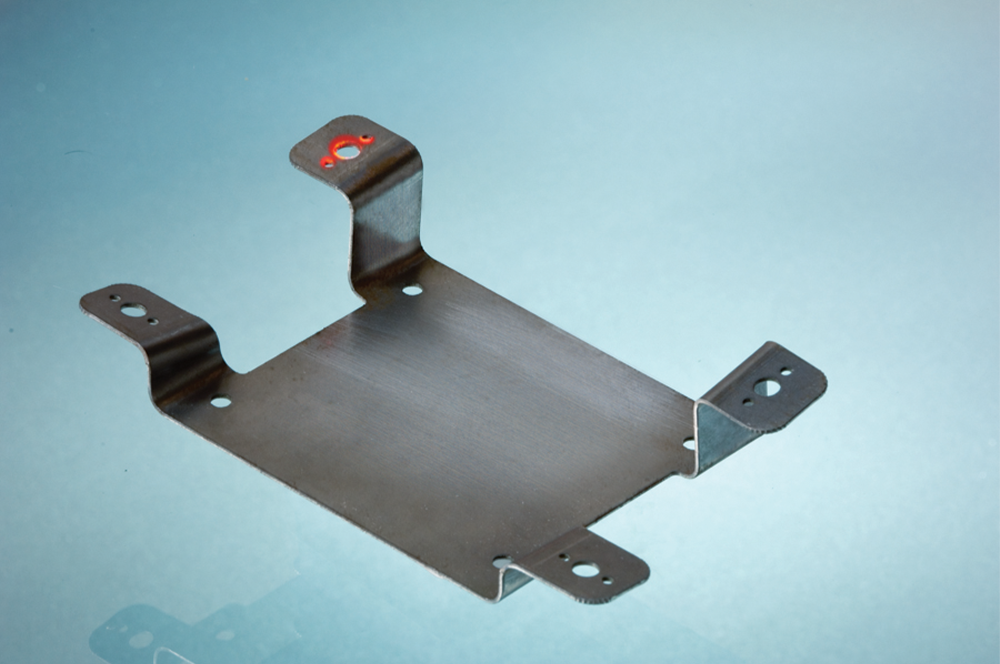

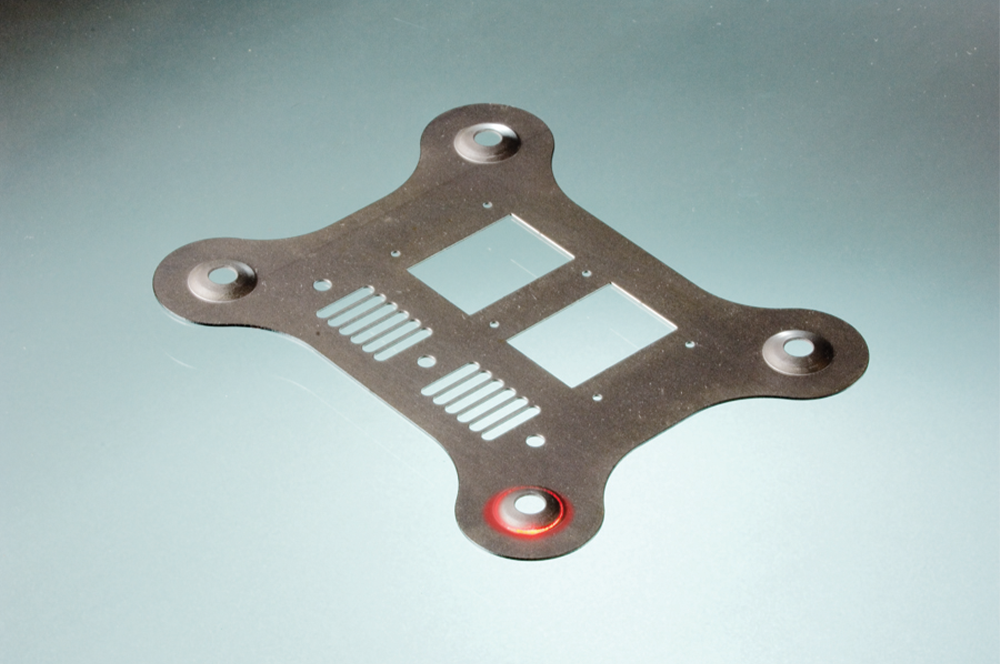

FabriVISION is able to qualify form features by projecting an outline of the form directly onto the part surface while the part is being visually inspected. This enables the operator to verify the proper placement of the formed feature.

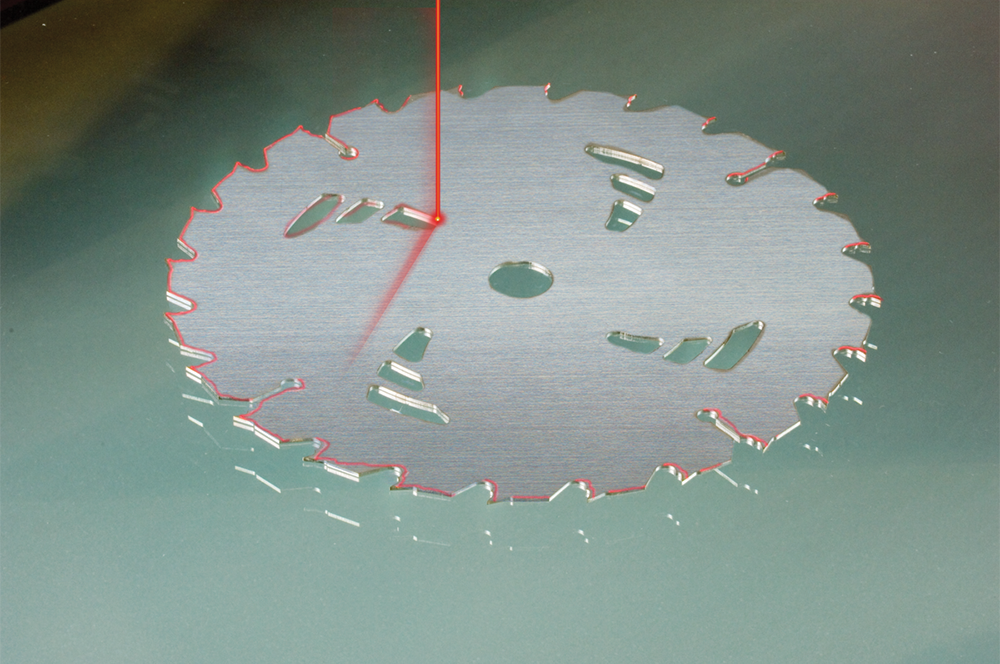

The scanning process captures the complete profile of existing parts or templates at laser speed. Then, the data is stored in AP100US PRT files or DXF files. The software also allows you to manipulate the scan data and part profile on-screen so that you can optimize the quality of the CAD model.
